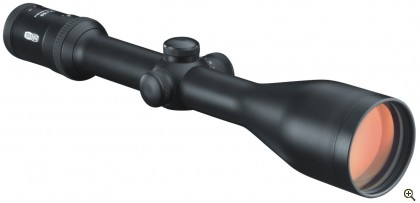

Meopta 3-12x56 ZD Riflescope

Meopta ZD 3-12x50 Riflescope This riflescope is specially designed for shooting in low visibility conditions.

Meopta 3-12x56 ZD Riflescope Description:

Meopta ZD 3-12x56 Riflescope

This riflescope is specially designed for shooting in low visibility conditions.  The optical systems with variable zoom are designed for providing secure aiming in medium and long range shooting.  Compact steel tube with highest impact resistance, enhanced optical performance and water resistance make these scopes ideal for all types of rifles under extreme conditions.  The scope can be used on rifles like CZ 750, CZ 700, CZ 550, SVD Dragunov, Steyer, Walther, SIG, ACCURACY and SAKO.  The reticle used here is MIL-DOT with illuminated cross-hair or V-DOT with illuminated arrow.

Specifications

1. Magnification 3-12x
2. Diameter of objective 56mm
3. Field of view 6.3°    1.9°
4. Diameter of entrance pupil 18.6   4.6mm
5. Distance of entrance pupil min 70mm
6. Adjusting step horizontal 10mm/100m
7. Adjusting step vertical 10mm/100m
8. Dioptric correction ± 3D
9. Basic test illuminated MIL DOT
10. Thickness of reticle to distance 100m 4mm
11. Optimum focusing of paralax 150   250 m
12. Length 363mm
13. Weight 615g
14. Diameter of tube 30mm
15. Type of battery CR2354
